CM-EH / EH2D Series Continuous Extrusion Blow Molding Machine
Continuous Extrusion Blow Molding Machine
CM-EH / EH2D Series - Extrusion Blow Molding Machine

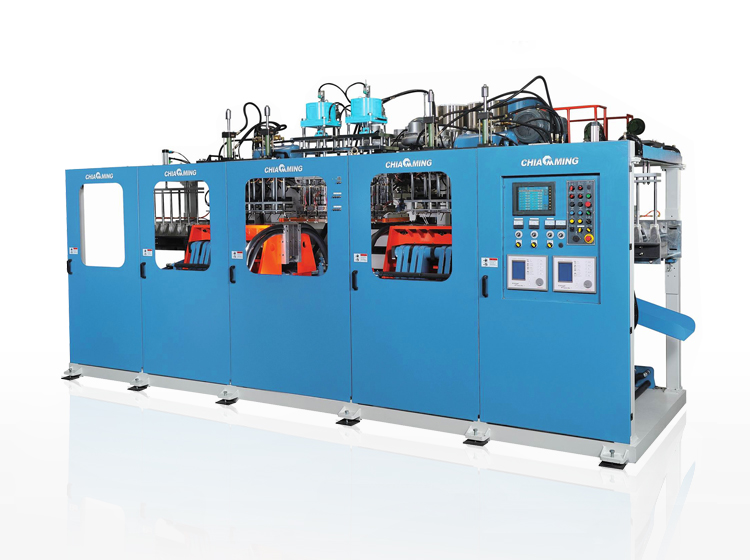

CMA - 90 EH / EH2D
This model is a blow molding machine for high speed production of high quality small bottles. This machine offers PLC control, and linear guide in blowing unit for shorter cycle times and much higher efficiency.
| CM-EH / EH2D Series | |
|---|---|
| bottle capacity | Output BPH(pcs/hr) |
| <300ml | <3000 |
| 300ml~500ml | <3000 |
| 500ml~1L | <3000 |
| Model | CM-90EH | CM-90EH2D | ||||
|---|---|---|---|---|---|---|
| Material to be Used | PE | PE | ||||
| Screw Diameter | mm | 90 | 90 | |||
| Screw L/D ratio | L/D | 24:1 | 24:1 | |||
| Screw Speed Range | rpm | 15~65 | 15~65 | |||
| Inverter Motor | HP | 75 | 90 | |||
| Mold Center Distance | mm | 80 | 80 | |||
| Hydraulic Drive Motor | HP | 40 | 50 | |||
| * All specifications and designs are subject to change without notice. | ||||||
Food Packaging
Petrochemicals & Chemical
Cleaning Supplies
Cosmetic
Medical Supplies
